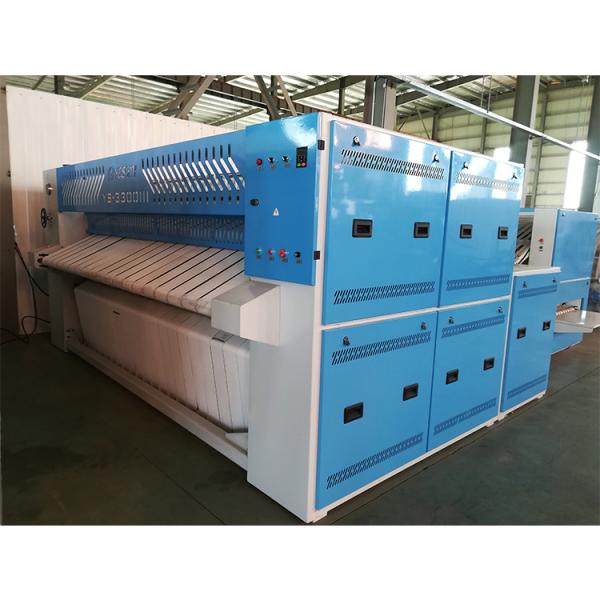

Commercial Automatic Flatwork Ironer Machine
Commercial Automatic Flatwork Ironer Laundry Equipment designed for high-volume industrial applications with stainless steel construction.
Middle Eastern Market Requirements
- High capacity and efficiency for large-scale laundry operations
- Exceptional durability and reliability for continuous demanding use
- Advanced temperature control and steam functions for various fabrics
- Adaptability to different fabric types and thicknesses
- Energy-efficient operation to reduce operating costs
- Easy operation and maintenance to minimize downtime
- Automation features to improve productivity
- Robust performance in high heat and humidity conditions
Technical Specifications
| Attributes |
Y-1600I |
Y-2500I |
Y-2800I |
Y-3000II |
Y-3300III |
| Max Feeding Width (mm) |
1600 |
2500 |
2800 |
3000 |
3300 |
| Rolls Quantity |
1 |
1 |
1 |
2 |
3 |
| Roll Diameter (mm) |
800 |
800 |
800 |
800 |
800 |
| Ironing Speed (m/min) |
0-9 |
0-9 |
0-9 |
0-18 |
0-25 |
| Electric Heating Power (kw) |
18 |
27 |
36 |
64 |
96 |
| Steam Pressure (Mpa) |
0.3-0.6 |
0.3-0.6 |
0.3-0.6 |
0.3-0.6 |
0.3-0.6 |
| Steam Consumption (kg/h) |
80 |
120 |
250 |
250 |
320 |
| Steam Inlet (Inch) |
G1.5" |
G1.5" |
G1.5" |
G1.5" |
G1.5" |
| Drain Outlet (Inch) |
G1.5" |
G1.5" |
G1.5" |
G1.5" |
G1.5" |
| Rated Voltage (V) |
3P/220V/380V |
3P/220V/380V |
3P/220V/380V |
3P/220V/380V |
3P/220V/380V |
| Motor Power (kw) |
0.75 |
0.75 |
1.5 |
1.5 |
2.2 |
| Dimension L×W×H (mm) |
1600×1300×1270 |
3500×1300×1270 |
3840×1300×1270 |
4040×2410×1420 |
4340×3350×1420 |
| Net Weight (kg) |
750 |
1100 |
1300 |
3050 |
4350 |
Key Advantages
Flatwork Ironer Laundry Equipment significantly improves efficiency and productivity by automating the ironing process, saving time and labor compared to manual ironing. It delivers consistent, high-quality ironing results, ensuring flatwork items look crisp and presentable. The equipment handles different fabric types and thicknesses, providing operational flexibility. Advanced models feature adjustable temperature and pressure settings, steam injection, and automated feeding and folding systems for enhanced functionality.
Applications & Features
Y series roller automatic flat-work ironing machine is suitable for star-level hotels, restaurants, hospitals, railways, large washing centers, washing-dyeing factories, and industrial-mining enterprises. It provides ironing and finishing for flat fabrics like bedsheets, bedcovers, and tablecloths after washing and extraction.
Product Highlights
- Efficient ironing with duplex and no trace for high-quality results
- High-precision 304 stainless steel drum for long service life
- Frequency conversion drives for adjustable ironing speed based on fabric type
- Programmable computer control with multi-language panel and LCD display
- Smooth operation with frequency-conversion motor, reducer, and chain transmission
- Buffer-equipped auto adjustment conveying system for precise fabric handling
- Safe electrical-pneumatic design with emergency stop functionality
After-Sales Service
- 1-year warranty on the complete machine
- Lifelong technical support
- Guaranteed spare parts supply
- Overseas engineering service available
- Free technical training at factory
- Free technical guidance through network
- On-site service under contract
Warranty: Main spare parts (excluding consumable accessories) under ONE YEAR warranty with defects from manufacturer by free shipping.
